Vionaro Inset Drawer Sides 121/450mm Gph - Steel
Product Code: 550.42.345
Vionaro Inset Drawer Sides 121/450mm Gph - Steel
Product Code: 550.42.345
27 In stock
£45.85
Ex. VAT: £38.21
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1+ | £45.85 | — |
- Products Description
- Technical Specifications
- Dimensions
Article details
Single section drawer sides give a smooth appearance with no seams or reveals90° straight sides inside and outsideSlimline 13 mm wide steel drawer sideBottom panel machining not requiredTool-free front assembly
Area of application
For use with Dynapro standard and Tipmatic runner systemsFor use with 16 mm base and back panel
Adjustment facility

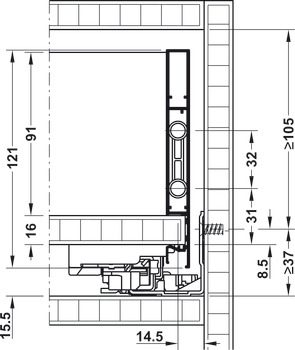

Side adjustment: ±1.5 mm, Height adjustment: -1.5 – 2.5 mm, Tilting angle adjustment facility: -1.5 – 2.5 mm
Order reference

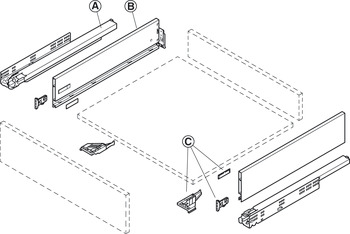

Order fitting set, drawer base, back and front separately
Single section drawer sides give a smooth appearance with no seams or reveals90° straight sides inside and outsideSlimline 13 mm wide steel drawer sideBottom panel machining not requiredTool-free front assembly
Area of application
For use with Dynapro standard and Tipmatic runner systemsFor use with 16 mm base and back panel
Adjustment facility
Side adjustment: ±1.5 mm, Height adjustment: -1.5 – 2.5 mm, Tilting angle adjustment facility: -1.5 – 2.5 mm
Order reference
Order fitting set, drawer base, back and front separately
| Material | Steel |
| Drawer side height | 121 mm |
