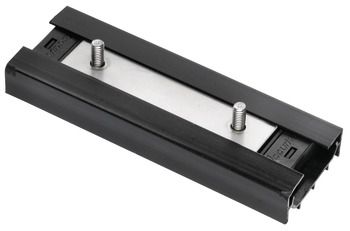

Accuride 0115RC Ball Carriage-BB Stainless Steel

Article details

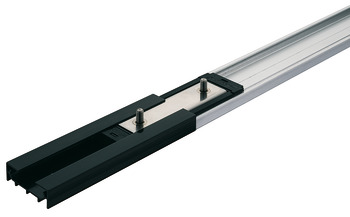

Grease free and smooth runningThread: 5 mmInstallation: The balls are loosely inserted into the re-circulating ball carriage therefore it is supplied packed in a plastic envelope. In order to avoid losing balls during the installation of the re-circulating ball carriage, the plastic envelope must be pressed against the aluminium track and the re-circulating ball carriage must be slid carefully into the aluminium track. Finally install end stops.
Area of application
For sliding objects horizontally such as cabinets, claddings, display walls etc.
Suitable for
Accuride 0115RC linear runners
Version
Running track can be shortened or extended to required size
Supplied in a plastic sleeve as balls are loose in the ball carriage. To prevent the balls from falling out when installing the ball carriage, press the plastic sleeve against the aluminium track, then carefully slide the ball carriage into the aluminium track. Then fit the end stops.
Order reference
Tracks and accessories to be ordered separately
