Accuride 0116 Ball Carriage - BB Polymer

Article details
Track with ball bearing mounted carriage for sliding base units, table tops or display wallsLinear motion guide and ball bearing carriageCorrosion resistantLoad bearing capacity determined by mounting psotion and number of ball bearing carriages. Please see catalogue page for info.Weight must be evenly distributed over the rec-circulating ball carriagesThe specified values apply to performed test distance of 80,000 mFix track as recommended on rigid or flat surface
Grease free and smoth runningInstallation: The balls are inserted loosely into the re-circulating ball carriage therefore it is supplied packed in a plastic envelope. In order to avoid losing balls during installation of the re-circulating ball carriage, the plastic envelope must be pressed against the aluminium track and the re-circulating ball carriage must be slid carefully into the aluminium track. Finally install end stops.
Area of application
For sliding objects horizontally, such as cabinets, claddings, display walls etc.
Suitable for
Accuride 0116 linear runners

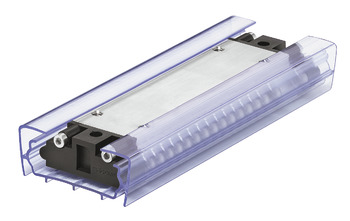

Supplied in a plastic sleeve as balls are loose in the ball carriage. To prevent the balls from falling out when installing the ball carriage, press the plastic sleeve against the aluminium track, then carefully slide the ball carriage into the aluminium track. Then fit the end stops.
Order reference

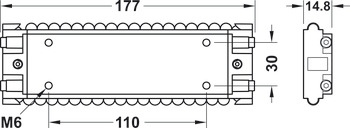

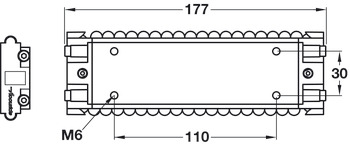

Tracks, end stops, M6 fixing screws and accessories to be ordered separately
