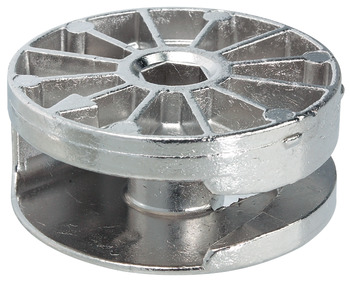

Maxifix Housing 19/D35mm SW6 Zinc Alloy Bright - Zinc Alloy; Zinc Alloy
Product Code: 262.87.003
Maxifix Housing 19/D35mm SW6 Zinc Alloy Bright - Zinc Alloy; Zinc Alloy
Product Code: 262.87.003
41,085 In stock
£0.84
Ex. VAT: £0.70
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £0.84 | — |
| 10 – 24 | £0.79 | Save 6% |
| 25 – 49 | £0.76 | Save 10% |
| 50+ | £0.67 | Save 20% |
- Products Description
- Technical Specifications

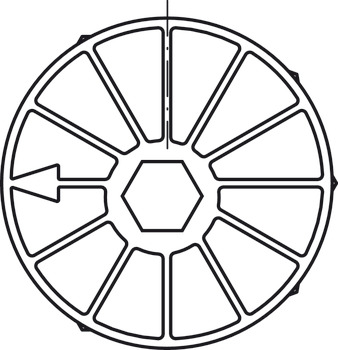

- Dimensions
Article details

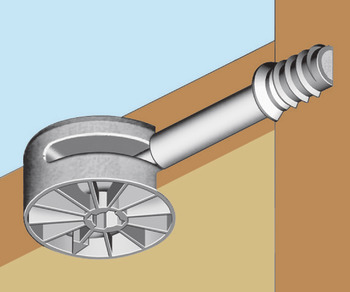

The Maxifix connector system is particularly suitable for permanently load bearing connections, e.g. for cabinet and bedroom construction, as well as in counter or post furniture construction. It is suitable for use from a wood thickness of 19 mmFor extremely stable connections subjected to heavy loadsFor use in wood
For wood thickness≥19 mm
Dim. A9.5 mm
Drill hole Ø housing35 mm
Area of application
For extremely stable connections subjected to heavy loads
Suitable for
Connecting bolt with drill hole Ø 9 mm.
Häfele Lifetime Guarantee
25 years
Additional information attributes
Dimension A: Distance between centre of bolt hole and top edge, corresponds to half of the wood thickness (with 19 mm thick wood).
The Maxifix connector system is particularly suitable for permanently load bearing connections, e.g. for cabinet and bedroom construction, as well as in counter or post furniture construction. It is suitable for use from a wood thickness of 19 mmFor extremely stable connections subjected to heavy loadsFor use in wood
For wood thickness≥19 mm
Dim. A9.5 mm
Drill hole Ø housing35 mm
Area of application
For extremely stable connections subjected to heavy loads
Suitable for
Connecting bolt with drill hole Ø 9 mm.
Häfele Lifetime Guarantee
25 years
Additional information attributes
Dimension A: Distance between centre of bolt hole and top edge, corresponds to half of the wood thickness (with 19 mm thick wood).
| Material | Zinc alloy; Zinc alloy |
| Installation | Drilling distance A: distance between middle of bolt hole and top edge corresponds to half of the wood thickness (with 19 mm wood thickness).Drilling dimension B: distance from middle of Maxifix housing to front edge of lateral element (35 or 55 mm), depending on choice of connecting bolt. |
| Drilling depth | 15.5 mm |
