Angled Component AD 30 SM Hos Mk.Black - Plastic (polycarbonate)

Article details

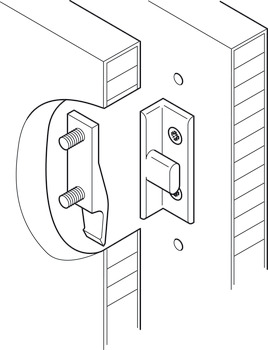

Double partition fittings are used for:Attaching sound insulation to the door leafConstruction of 2-leaf frame doorsDoubling of cabinet sides in the door recess areaConnecting frame elementsLinking elementsManufacturing sandwich elementsInstalling lightweight partition wallsFixing wall elements (cabinet construction)Door construction with panel design
Do not treat with chemical solutions or aggressive greasesDo not adjust by hammering
Area of application

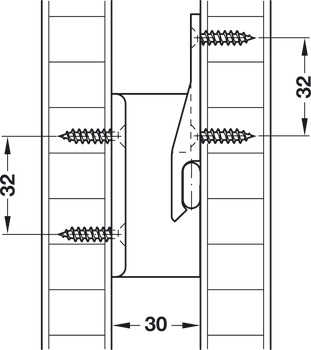

For 30 mm cavity between panels
For series drilled holes
System 32
Temperature range
-100 – 135 °C
Häfele Lifetime Guarantee
25 years
Order reference
Hospa screws Ø 4.0 mm and Varianta screws Ø 3.0 mm and Ø 5.0 mm are available to order separately
Additional information attributes
Max load capacity of pair of fittings is 20 kgBlack Makrolon, has a temperature stability from -100°C to +135°C
