Minifix GV Mitre Joint M6/24mm Steel Galvanised - Steel; Steel
Product Code: 262.12.840
Minifix GV Mitre Joint M6/24mm Steel Galvanised - Steel; Steel
Product Code: 262.12.840
Out of Stock
Back in stock: 06/11/2026
£0.97
Ex. VAT: £0.81
Sold in packs of 100 — £97.04 per pack
| Quantity | Pack Price (inc. VAT) | You Save |
|---|---|---|
| 1 pack | £87.34 | Save 10% |
| 2+ packs | £77.64 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Article details
For screwing into sleeves or dowels, for installation in Ø 8 mm or Ø 10 mm holes
Area of application
For mitre angles from 90° to 180°
Bolt hole
7 mm
Order reference
Screw in sleeves and dowels with M6 internal thread are available to order separately
Configuration required
Additional information attributes

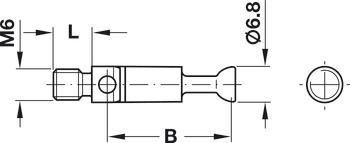

The inset distances F in mm in the following table apply to mitre-joint connecting bolts with a drilling dimension B of 44 mm. 20 mm must be deducted from the specified inset distances F for drilling dimension B of 24 mm. The dimension for drilling depth D corresponds to the drilling depth D of the Minifix® connector housing that is used.Please use connector housing without flanged rim.
For screwing into sleeves or dowels, for installation in Ø 8 mm or Ø 10 mm holes
Area of application
For mitre angles from 90° to 180°
Bolt hole
7 mm
Order reference
Screw in sleeves and dowels with M6 internal thread are available to order separately
Configuration required
Additional information attributes
The inset distances F in mm in the following table apply to mitre-joint connecting bolts with a drilling dimension B of 44 mm. 20 mm must be deducted from the specified inset distances F for drilling dimension B of 24 mm. The dimension for drilling depth D corresponds to the drilling depth D of the Minifix® connector housing that is used.Please use connector housing without flanged rim.
| Material | Steel; Steel |
| Thread Diameter | M6 |
