Con Shelf Support 24mm Wood/Wall Screw - Steel
Product Code: 283.33.910
Con Shelf Support 24mm Wood/Wall Screw - Steel
Product Code: 283.33.910
4,376 In stock
£3.14
Ex. VAT: £2.62
Sold in packs of 4 — £12.55 per pack
| Quantity | Pack Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 packs | £11.93 | Save 5% |
| 5 – 9 packs | £11.29 | Save 10% |
| 10+ packs | £10.04 | Save 20% |
- Products Description
- Technical Specifications
Article details

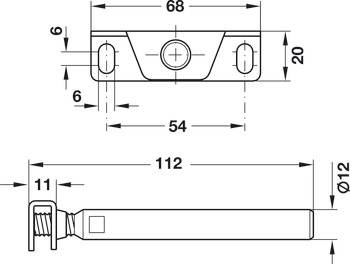

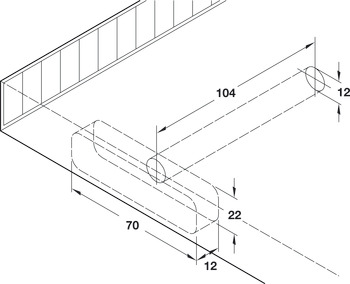

Supporting pin is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelfHeight adjustable via slotsInclination adjustment using supporting pin which presses on the rear plate when turned in
Area of application
For installation into woodwork or masonry walls
For shelf depth
≤300 mm
Note on load bearing capacity
Order reference
Hospa Screw Ø 5.0 mm is not supplied. Please order separately
Configuration required
Supporting pin is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelfHeight adjustable via slotsInclination adjustment using supporting pin which presses on the rear plate when turned in
Area of application
For installation into woodwork or masonry walls
For shelf depth
≤300 mm
Note on load bearing capacity
Order reference
Hospa Screw Ø 5.0 mm is not supplied. Please order separately
Configuration required
| Material | Steel |
| Load bearing capacity | 80 – 200 kg; (with shelf support spacing = max. 700 mm and evenly distributed load) |
| Supplied with | 1 Supporting pin with mounting plate, galvanized steel |
| Installation | For screw fixing to support elementFor mounting in drilled hole in shelf |
