Con Shelf Support 14mm Press Wall 283.32.060

Con Shelf Support 14mm Press Wall - Steel Zinc Plated

Product Code: 283.32.060

Con Shelf Support 14mm Press Wall - Steel Zinc Plated

Product Code: 283.32.060
Download Brochure
Browse more Shelving Brackets
25 In stock
£10.33
Ex. VAT: £8.61
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
QuantityUnit Price (inc. VAT)You Save
1 – 9£10.33—
10 – 19£9.82Save 5%
20 – 39£9.30Save 10%
40+£8.27Save 20%
Buy 40+ and save 20%
Order before 3pm for next-day dispatch
  • Products Description
  • Technical Specifications
Article details

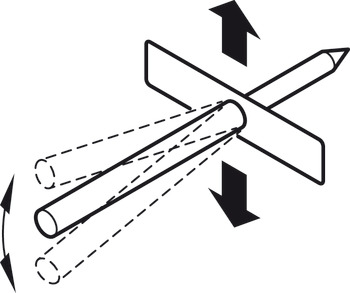

To insert the shelf support, drill out the board as shown in the drawing right Level the shelf by laying on the shelf supports and adjusting the eccentric screw before finally fixing the shelf in positionAdjustable in height and inclination:Size 12 mm: ±1 mmSize 14 mm: ±2 mm
VersionWith screw-on plate and wall plug fixing
Area of application
For installation into masonry walls
Mill out the lateral hole for holding the support bolt with an elongated hole drilling machine or chain mortiser.Take the eccentric adjusting range into consideration when milling out the holder for the screw-on plate.
Order reference
Ø 5.0 mm Hospa screws required, order separately
Configuration required
Additional information attributes
max. distance between two shelf supports: 700 mm
Material Steel
Colour/Finish zinc plated
Supplied with 1 Supporting pin with mounting plate2 Pre-mounted eccentric sleeves1 S8 R80 Fisher wall plug
Installation :- Drill lateral hole for accommodating support bolt with elongated hole drilling machine or chain cutter.- Take eccentric adjusting range into consideration when milling recess for screw-on plate.; For screw fixing to support elementFor mounting in drilled hole in shelf; reference
