Con Shelf Support for Wall - Steel

Name: Con Shelf Support for Wall - Steel
Brand: Hafele
SKU: 283.30.038
Price: 3.38 GBP
Availability: InStock

Product Code: 283.30.038

Con Shelf Support for Wall - Steel

Product Code: 283.30.038

Download Brochure

Browse more Shelving Brackets

66,863 In stock

£3.38

Ex. VAT: £2.82

Quantity	Unit Price (inc. VAT)	You Save
1 – 9	£3.38	—
10 – 19	£3.20	Save 5%
20 – 39	£3.04	Save 10%
40+	£2.70	Save 20%

Products Description
Technical Specifications

Area of application
For concealed mounting of shelvesFor installation into woodwork or masonry wallsSuitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
Note on load bearing capacity
The load bearing capacity of the shelf support is dependent on: Shelf materialShelf depthProperties and condition of wall
Order reference
More than 2 pcs may be required per shelf depending on shelf weight and dimensions
Configuration required

Material	Steel

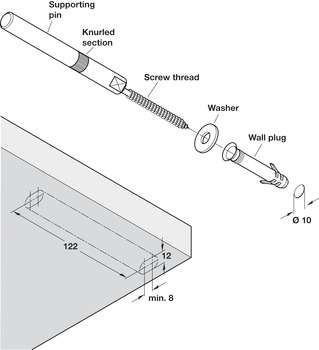

Supplied with	1x Supporting pin with screw, hardened steel1x Washer, galvanized steel1x Wall plug, SR 10 60 mm, grey nylon
Installation	Drill Ø 10 mm hole and insert wall plugSlip washer (supplied) onto screw threadScrew shelf support into wall plugInstall shelf on support as far as the knurled sectionUse an SW 10 open-ended wrench for vertical adjustmentFinally push the shelf all the way to the wall
