Shelf Clamp Support 4-45mm Screw Stainless Steel Eff - Zinc Alloy
Product Code: 287.76.010
Shelf Clamp Support 4-45mm Screw Stainless Steel Eff - Zinc Alloy
Product Code: 287.76.010
20 In stock
£61.30
Ex. VAT: £51.08
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £61.30 | — |
| 2 – 3 | £58.07 | Save 5% |
| 4+ | £51.62 | Save 16% |
- Products Description
- Technical Specifications
Article details
Shelf depth: min 170 mm, max. 210Spacing between brackets: max. 700 mm
Area of applicationfor wooden and glass shelves
For shelf thickness4 – 45 mm

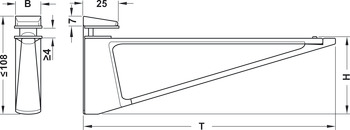

Dim. (W x D x H)18 x 180 x 55 mm
17 kg
Note on load bearing capacity
17 kg per piece, tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 1,000 x 210 x 38 mm,i.e. 34 kg load bearing capacity with surface load and 2 supports
Shelf depth: min 170 mm, max. 210Spacing between brackets: max. 700 mm
Area of application
For glass and wooden shelves
Distance between bases
700 mm
Additional information attributes
max. distance between two shelf supports: 700 mm.The specified load bearing capacity applies only with proper and reliable attachment to the wall.
Shelf depth: min 170 mm, max. 210Spacing between brackets: max. 700 mm
Area of applicationfor wooden and glass shelves
For shelf thickness4 – 45 mm
Dim. (W x D x H)18 x 180 x 55 mm
17 kg
Note on load bearing capacity
17 kg per piece, tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 1,000 x 210 x 38 mm,i.e. 34 kg load bearing capacity with surface load and 2 supports
Shelf depth: min 170 mm, max. 210Spacing between brackets: max. 700 mm
Area of application
For glass and wooden shelves
Distance between bases
700 mm
Additional information attributes
max. distance between two shelf supports: 700 mm.The specified load bearing capacity applies only with proper and reliable attachment to the wall.
| Material | Zinc alloy |
| Load bearing capacity | 17 kg |
| Installation | For screw fixing to support element Shelf is secured by tightening with clamps; reference |
