Hebgo HD Fold.Bracket 380x208mm 500kg/Pr Steel

Article details

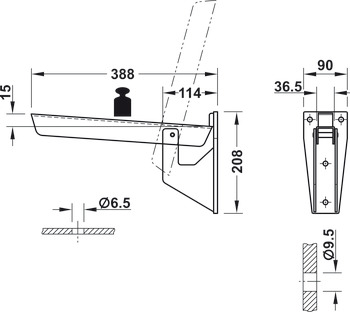

When not in use, the bracket occupies the space specified in the table below. It is pre-drilled for the seat, which may be up to 40 mm thick
The specified load bearing capacity applies:Only when used in pairsWith even load distribution (surface loads)With proper and reliable attachment to the wallThe fixing method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).
Product version
Without pull-in spring
Note on load bearing capacity
500 kg
When not in use, the bracket occupies the space specified in the table below. It is pre-drilled for the seat, which may be up to 40 mm thick
Area of application
Suitable for work surfaces and benches
Version
FoldingWithout pull-in spring
Additional information attributes

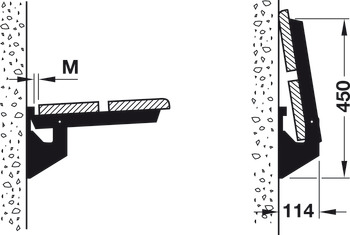

Max. distance between two brackets: 700 mm.The specified load bearing capacity applies only with even load distribution (surface load) and proper and reliable attachment to the wall.
