Conc Cabinet Hanger 130kg Phillips/SF RH Long - Plastic, Steel Zinc Plated

Article details
Cabinet hanger concealed behind rear panel, only cover caps visible inside the cabinetHandedAutomatic hook off protection by surrounding the rail, no extra “locking” requiredWith Transportation aid: wall rail can be locked between arm and plate for transport
Automatic hook-off protection by surrounding the rail, no extra 'locking' required → without toolsHeight and depth adjustment of the hanging cabinet conveniently from the frontWith transportation aid: Wall rail can be locked between arm and plate for transport
Area of application
For hanging wall units
130 kg

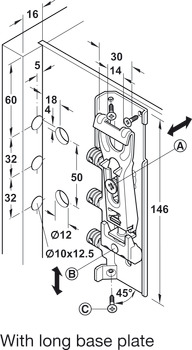

Cabinet hanger is mounted 'invisibly' behind the rear panel (space requirement ≥16 mm)The version with short base plate must be fitted in the upper third of the cabinet for safety reasons.Screw in safety lock screw(s) at an angle of 45°.Pull out supporting arm completely prior to hooking in.Only use hand screwdriver for adjustment.For the version with long base plate, the hanger has to be screwed to the top panel as well; this results in a higher load bearing capacity.
Standard
The load bearing capacity of the cabinet hanger is 92 kg/item with long base plate in accordance with the requirements of the DIN EN 15939 standard.
Adjustment facility
(with clearance 16 mm)
Order reference
Wall rail 290.09.910 or 290.10.900 must be used in order to guarantee functionality.Please note the safety information for cabinet hangers.
Additional information attributes
The version with short base plate must be fitted in the upper third of the cabinet for safety reasons.Screw in safety lock screw(s) at an angle of 45°.Pull out supporting arm completely prior to hooking in.Only use hand screwdriver for adjustment.For the version with long base plate, the hanger has to be screwed to the cabinet top panel as well; this results in a higher load bearing capacity.
