Cabinet Hanger SF LH upto 104kg 2pc SNP - Steel Nickel Plated
Product Code: 290.02.702
Cabinet Hanger SF LH upto 104kg 2pc SNP - Steel Nickel Plated
Product Code: 290.02.702
Discontinued
£3.73
Ex. VAT: £3.11
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £3.73 | — |
| 2 – 4 | £3.54 | Save 5% |
| 5+ | £3.14 | Save 16% |
This product has been discontinued.
- Products Description
- Technical Specifications
Article details

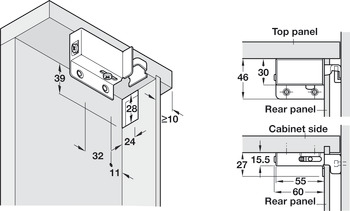

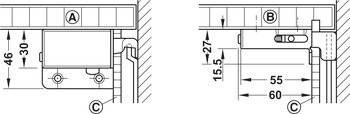

Three way adjustmentVertical adjustment: 16 mmDepth adjustment: 14 mmLateral adjustment: 18 mm

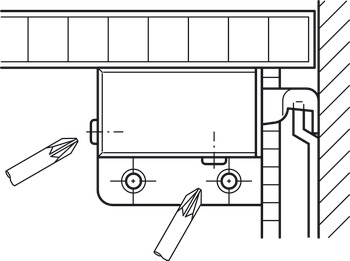

The screwdriver can be inclined by ±15° which allows comfortable adjustment of the screws.
zinc plated
Product versionVisible inside the cabinet
Area of application
For hanging cabinets and closets
104 kg
Three way adjustmentVertical adjustment: 16 mmDepth adjustment: 14 mmLateral adjustment: 18 mm
Standard
The load bearing capacity of the cabinet hanger is 52 kg/piece in compliance with the DIN EN 15939 standard requirements.
Adjustment facility
Side adjustment:
Three way adjustmentVertical adjustment: 16 mmDepth adjustment: 14 mmLateral adjustment: 18 mm
The screwdriver can be inclined by ±15° which allows comfortable adjustment of the screws.
zinc plated
Product versionVisible inside the cabinet
Area of application
For hanging cabinets and closets
104 kg
Three way adjustmentVertical adjustment: 16 mmDepth adjustment: 14 mmLateral adjustment: 18 mm
Standard
The load bearing capacity of the cabinet hanger is 52 kg/piece in compliance with the DIN EN 15939 standard requirements.
Adjustment facility
Side adjustment:
| Material | Steel |
| Colour/Finish | nickel plated |
| Load bearing capacity | 52 kg; per pair |
| Installation | Screw fixing; reference |
