Libra H2 Cabinet Hanger Conc UH SZP

Article details
Features an innovative anti-turnover deviceCabinet hanger concealed behind rear panel, only cover caps visible inside the cabinetVertical and horizontal adjustment. The two movements are 100% independent of each other and therefore make the adjustments much easier and more efficient
Area of application
For hanging wall units
150 kg

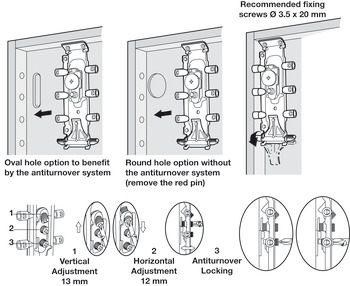

Two-way independant adjustment:Vertical adjustment: 13 mmHorizontal adjustment: 12mm
Order reference
Wall plates and cover caps must be ordered separatelyPlease order fixings separatelyPlease note: The locking adjustment screw cannot be accessed if round cover caps are fitted, order rectangular cover cap if access to all 3 adjusting screws is required
Additional information attributes
Cabinet hangers should only be adjusted with a hand tool and not a power toolFor safety reasons, the cabinet hangers must be fitted in the upper third of the cabinet
