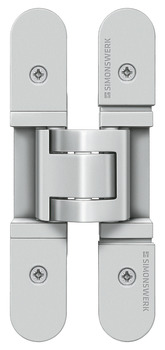

Tectus TE526 3D 180D Hinge 304 SSS

Article details
All stainless steel, ideal for areas where there may be hygiene, weathering or corrosion issuesSuitable for left or right hand applicationsMaintenance-free friction bearingsWhen fitted with intumescent kit 924.17.197 these hinges have been tested on a fire door to 60 minutes
Max. adjusted door weight 120 kg
Model series
TECTUS TE 526 3D
Area of application
For wooden, steel or aluminium frames, for flush doors
For frame type
Steel frame, Wooden frame, Aluminium frame
Door thickness
≥35 mm
Router bit Ø
24 mm
Thrust ring Ø
30 mm
Bearing type
Friction bearing, maintenance-free
Adjustment facility
3D
Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Standard
Certified in compliance with EN 1935:2002
Grade
4|7|6|1|1|4|0|13
Order reference
FD 60 fire rated when installed with intumescent kit Cat. No. 924.17.697, to be ordered separately
Additional information attributes
"Energy" version for permanent and invisible energy transmission from the door frame to the door leaf optionally available.
