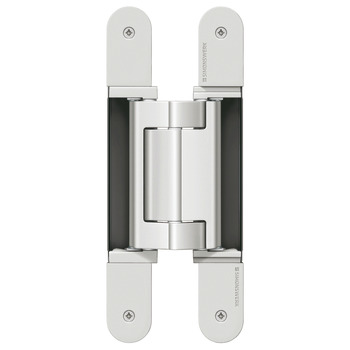

Tectus TE640 3D A8 180D Hinge PN 924.17.572

Tectus TE640 3D A8 180D Hinge PN - Aluminium, Steel

Product Code: 924.17.572

Tectus TE640 3D A8 180D Hinge PN - Aluminium, Steel

Product Code: 924.17.572
Download Brochure
Browse more Adjustable Hinges
Out of Stock
Back in stock: 20/10/2026
£457.39
Ex. VAT: £381.16
This product is part of a range with 6 options. Select an option to filter, then choose the matching variant.
QuantityUnit Price (inc. VAT)You Save
1 – 1£457.39—
2 – 3£433.32Save 5%
4+£385.16Save 16%
Buy 4+ and save 16%
  • Products Description
  • Technical Specifications
  • Dimensions
Article details

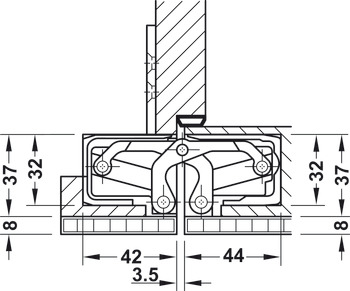

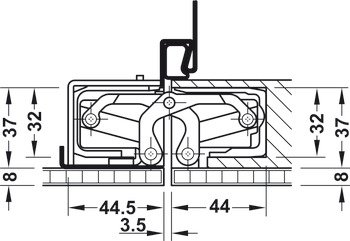

Allows for 8mm cladding fitted to door and frame facingsSuitable for left or right hand applicationsMaintenance free friction bearings
MountingFor DIN left and DIN right hand use
Flange shaperounded
ModelTE 640 3D A8
Model series
TECTUS TE 640 3D A8
Area of application
For wooden, steel or aluminium framesFor flush doors
For frame type
Steel frame, Wooden frame, Aluminium frame
Max. door weight for 2 hinges
160 kg
Door thickness
≥40 mm
Router bit Ø
24 mm
Thrust ring Ø
30 mm
Adjustment facility
3D, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Additional information attributes
"Energy" version for permanent and invisible energy transmission from the door frame to the door leaf optionally available.
Material Aluminium, Steel
Opening angle 180 °
Supplied with Fixing screws

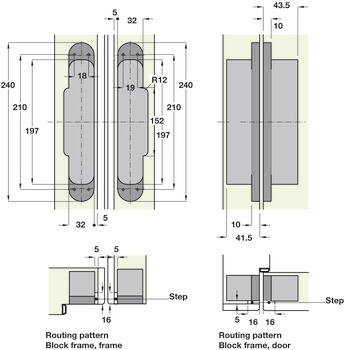

Flange width 32 mm
Flange height 240 mm
