Tectus TE340 3D FR 180D Hinge MN f2 - Aluminium And Steel
Product Code: 924.19.047
Tectus TE340 3D FR 180D Hinge MN f2 - Aluminium And Steel
Product Code: 924.19.047
Out of Stock
Back in stock: 07/12/2026
£253.21
Ex. VAT: £211.01
This product is part of a range with 7 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications

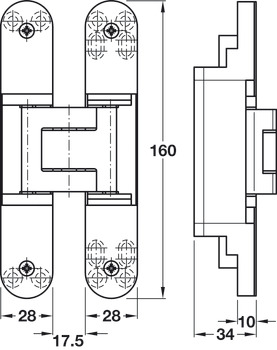

- Dimensions
Article details
FD 30 fire ratedIntumescent built into hinge bodyMaintenance free friction bearingsSuitable for left or right hand applications
Flange shaperounded
Area of application
For wooden, steel or aluminium framesFor flush doors
For frame type
Metal frame, For wooden frame
Door thickness
≥30 mm
Router bit Ø
24 mm
Thrust ring Ø
30 mm
Adjustment facility
3D, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Grade
3|7|4|1|1|4|0|11
FD 30 fire ratedIntumescent built into hinge bodyMaintenance free friction bearingsSuitable for left or right hand applications
Flange shaperounded
Area of application
For wooden, steel or aluminium framesFor flush doors
For frame type
Metal frame, For wooden frame
Door thickness
≥30 mm
Router bit Ø
24 mm
Thrust ring Ø
30 mm
Adjustment facility
3D, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
Grade
3|7|4|1|1|4|0|11
| Material | Aluminium and steel |
| Opening angle | 180 ° |
| Supplied with | Fixings |
| Flange width | 28 mm |
| Flange height | 160 mm |
