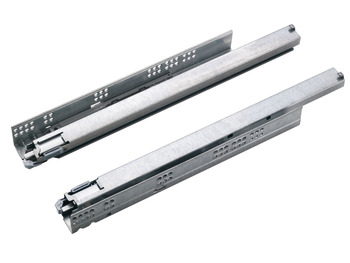

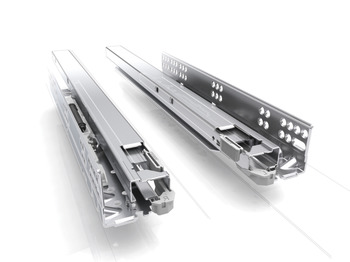

90+45ro Slide Drawer Runner Full 40kg 450mm SZP - Steel Zinc Plated, Zinc Plated

Article details
Featuring revolutionary tool less 4D adjustment which gives vertical tilt, side to side and depth adjustment (ideal for perfect allignment and accurate gaps, for inframe and lay on applications)100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawerImproved soft close function - with liquid in damper to give continuous soft close40 kg capacity as standard, so ideal for the majority of drawers, with 70 kg option available for very larger drawersIncredibly stable with the lowest deflection rates availableAlso available as add on push to open cartridge for handleless applications using soft close runner, Tipmatic cartridge and accessoriesFor use with Vionara drawer systemPlease note: 250 mm length Dynapro runners are not compatible with Tipmatic
Model series
Dynapro
Type of pull out
Full extension
Adjustment facility
Mounting
Slide-on
Order reference
Front and rear 4D fixing clips, 433.19.090, or 3D fixing clips, 433.19.040, to be ordered separately depending on level of adjustment requiredVarianta Ø 5 mm countersunk screws, Hospa Ø 4.0 mm pan head screws and optional accessories to be ordered separately
