MXP Central Locking Bar Lock 1 Side 10 - Locking Bar: Steel/Screw-on Bearing: Plastic Screw-on Bearing: Black (RAL 9011), Galvanized, Screw-on Bearing: Graphite Black
Product Code: 237.83.714
MXP Central Locking Bar Lock 1 Side 10 - Locking Bar: Steel/Screw-on Bearing: Plastic Screw-on Bearing: Black (RAL 9011), Galvanized, Screw-on Bearing: Graphite Black
Product Code: 237.83.714
Out of Stock
Back in stock: 06/11/2026
£14.92
Ex. VAT: £12.43
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1+ | £14.92 | — |
- Products Description
- Technical Specifications
Article details
Please note: the Matrix Box P central locking bar is not suitable for use with 270mm systemsFor use with drawer side sets with 50 kg carrying capacityLocking for both sides - Further information on requestCentral locking system with anti-tilt safety stop: Prevents simultaneous opening of several drawers
Central locking system that cannot be outsmarted
Area of application
For Variant-C and Matrix Box P desk pedestal without Push-to-Open
Version
Locking unit for system drawers that cannot be outsmarted

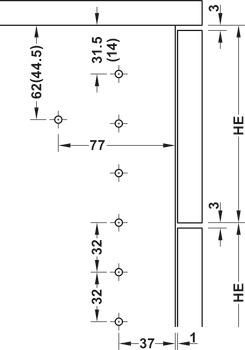

For series drilled holes
System 32
Häfele Lifetime Guarantee
25 years
Order reference
Matrix Box P standard drawer set, lock and accessory set to be ordered separately
Additional information attributes
The central locking bar can be shortened at the top by 2 HE.
Please note: the Matrix Box P central locking bar is not suitable for use with 270mm systemsFor use with drawer side sets with 50 kg carrying capacityLocking for both sides - Further information on requestCentral locking system with anti-tilt safety stop: Prevents simultaneous opening of several drawers
Central locking system that cannot be outsmarted
Area of application
For Variant-C and Matrix Box P desk pedestal without Push-to-Open
Version
Locking unit for system drawers that cannot be outsmarted
For series drilled holes
System 32
Häfele Lifetime Guarantee
25 years
Order reference
Matrix Box P standard drawer set, lock and accessory set to be ordered separately
Additional information attributes
The central locking bar can be shortened at the top by 2 HE.
| Material | Locking bar: Steel/Screw-on bearing: Plastic |
| Colour/Finish | Screw-on bearing: Black (RAL 9011), Galvanized, screw-on bearing: Graphite black |
| Installation | For suspending in the runner |
