2132 BB Drawer Runner Sgl 34kg 500mm Bright Zinc Plated - Steel
Product Code: 422.40.950
2132 BB Drawer Runner Sgl 34kg 500mm Bright Zinc Plated - Steel
Product Code: 422.40.950
47 In stock
£27.06
Ex. VAT: £22.55
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £27.06 | — |
| 2 – 4 | £25.64 | Save 5% |
| 5+ | £22.79 | Save 16% |
- Products Description
- Technical Specifications
- Dimensions
Article details
For desk pedestals and general storage drawersFront disconnect (by depressing lever) for drawer removalHold-in feature holds the closed drawer inSilent movement
Tolerance absorption tabsTested to 80,000 cycles
MountingSide mounting
VersionHold-in device in closed position
Type of pull out
Single extension
Holding function
Hold-in
Removing the running track
With release lever
Dim. (W x H)
224 mm
Order reference
Order Varianta Ø 5 cylindrical and Hospa Ø 4.0 pan head screws separatelyFixings: Max. head height 2.5 mm, Ø 9.6 mm
Additional information attributes

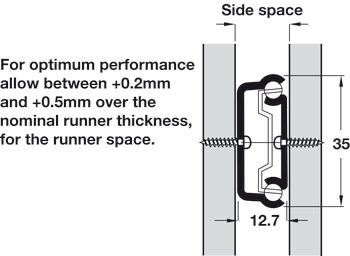

These runners have a cam adjuster on the front of each slide which gives 3.1 mm adjustment on the drawer front
For desk pedestals and general storage drawersFront disconnect (by depressing lever) for drawer removalHold-in feature holds the closed drawer inSilent movement
Tolerance absorption tabsTested to 80,000 cycles
MountingSide mounting
VersionHold-in device in closed position
Type of pull out
Single extension
Holding function
Hold-in
Removing the running track
With release lever
Dim. (W x H)
224 mm
Order reference
Order Varianta Ø 5 cylindrical and Hospa Ø 4.0 pan head screws separatelyFixings: Max. head height 2.5 mm, Ø 9.6 mm
Additional information attributes
These runners have a cam adjuster on the front of each slide which gives 3.1 mm adjustment on the drawer front
| Material | Steel |

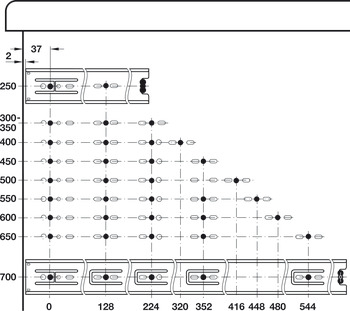

| Installation | 32 mm and universal hole pattern |
| Width | 224 mm |
