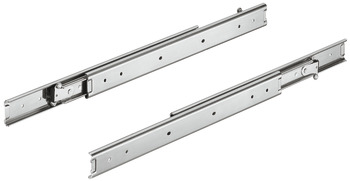

3630 BB Drawer Runner 2-Way Full 40kg 700mm Bright Zinc Plated - Steel
Product Code: 422.84.970
3630 BB Drawer Runner 2-Way Full 40kg 700mm Bright Zinc Plated - Steel
Product Code: 422.84.970
8 In stock
£201.16
Ex. VAT: £167.63
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £201.16 | — |
| 5+ | £178.80 | Save 11% |
- Products Description
- Technical Specifications
- Dimensions
Article details
Two way travel
Tested to 80,000 cyclesTwo-sided access with continuous frontsLocks in the centre
VersionHold-in (at centre)
Type of pull out
Full extension
Area of application
Use for pull through drawers when access is required from both sides of unit
Holding function
Hold-in
Removing the running track
without release lever
Dim. (W x H)
176 mm
Order reference
Order Hospa Ø 4.0 countersunk screws separately (max. head height 2.5 mm, Ø 9.6 mm)
Additional information attributes
Front panels must be notched for two-way travel drawers with continuous front panels.
Two way travel
Tested to 80,000 cyclesTwo-sided access with continuous frontsLocks in the centre
VersionHold-in (at centre)
Type of pull out
Full extension
Area of application
Use for pull through drawers when access is required from both sides of unit
Holding function
Hold-in
Removing the running track
without release lever
Dim. (W x H)
176 mm
Order reference
Order Hospa Ø 4.0 countersunk screws separately (max. head height 2.5 mm, Ø 9.6 mm)
Additional information attributes
Front panels must be notched for two-way travel drawers with continuous front panels.
| Material | Steel |
| Installation | Side mounting |
| Width | 176 mm |
