0330 BB Side Drawer Runner Full 50kg 300mm HGSS - Grade 304 Stainless Steel (1.4301 X 5Cr Ni 1810)
Product Code: 422.39.030
0330 BB Side Drawer Runner Full 50kg 300mm HGSS - Grade 304 Stainless Steel (1.4301 X 5Cr Ni 1810)
Product Code: 422.39.030
Out of Stock
Back in stock: 15/12/2026
£199.64
Ex. VAT: £166.37
Sold in packs of 5 — £998.20 per pack
| Quantity | Pack Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 0 packs | £898.38 | Save 10% |
| 1+ packs | £798.55 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Article details
Tested to 80,000 cycles
VersionHold-in feature holds the closed drawer in
Type of pull out
Full extension
Area of application
Suitable for corrosive, external or environmentally sensitive applications such as refrigeration, kitchens, boats and medical equipment
Holding function
Hold-in
Removing the running track
without release lever
Dim. (W x H)
192 mm
Order reference
Order Hospa Ø 4.0 countersunk screws separatelyFixings: Max. head height 2.5 mm, Ø 9.6 mm
Additional information attributes
Weights limit per pair based on length, weight limits reduce by 75% if flat mounted
Tested to 80,000 cycles
VersionHold-in feature holds the closed drawer in
Type of pull out
Full extension
Area of application
Suitable for corrosive, external or environmentally sensitive applications such as refrigeration, kitchens, boats and medical equipment
Holding function
Hold-in
Removing the running track
without release lever
Dim. (W x H)
192 mm
Order reference
Order Hospa Ø 4.0 countersunk screws separatelyFixings: Max. head height 2.5 mm, Ø 9.6 mm
Additional information attributes
Weights limit per pair based on length, weight limits reduce by 75% if flat mounted
| Material | Grade 304 stainless steel (1.4301 x 5Cr Ni 1810) |

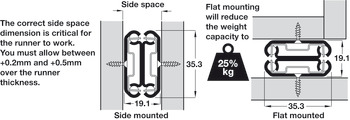

| Installation | Side or base mounted32 mm drilling pattern |
| Width | 192 mm |
