Smuso Soft/Self Close Mech-Wood Grey/Black - Plastic Light Grey And Black
Product Code: 432.13.507
Smuso Soft/Self Close Mech-Wood Grey/Black - Plastic Light Grey And Black
Product Code: 432.13.507
1,012 In stock
£2.98
Ex. VAT: £2.48
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £2.98 | — |
| 5 – 9 | £2.82 | Save 5% |
| 10+ | £2.51 | Save 16% |
- Products Description
- Technical Specifications
Article details
Tested to 100,000 cycles and therefore exceeding DIN EN 15338, level 3
Area of application
For use on roller runners, ball bearing runners without retainer retention or groove mounted runners
Note on load bearing capacity
Order reference
Order Hospa Ø 3.0 countersunk and Ø 3.0 pan head screws separately
Additional information attributes
The installation on one side or both sides is determined by the installation situation (width, depth, running properties and load bearing capacity of the runners)Always use 2 soft closing mechanisms for drawers wider than 400 mm or if the drawer’s depth exceeds its width
Tested to 100,000 cycles and therefore exceeding DIN EN 15338, level 3
Area of application
For use on roller runners, ball bearing runners without retainer retention or groove mounted runners
Note on load bearing capacity
Order reference
Order Hospa Ø 3.0 countersunk and Ø 3.0 pan head screws separately
Additional information attributes
The installation on one side or both sides is determined by the installation situation (width, depth, running properties and load bearing capacity of the runners)Always use 2 soft closing mechanisms for drawers wider than 400 mm or if the drawer’s depth exceeds its width
| Material | Plastic |
| Colour/Finish | Light grey and black |
| Load bearing capacity | 50 kg; : useful load of 25 kg with one-sided installationLoad bearing capacity: useful load of 50 kg with two-sided installation |

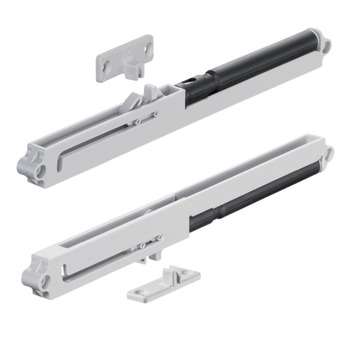

| Supplied with | 1x Soft and self closing mechanism1x Follower1x Set of installation instructions |

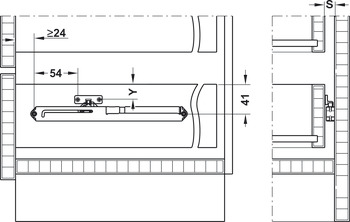

| Installation | On one or both sidesSoft and self closing mechanism for screw fixing to cabinet side panelFollower for screw fixing to drawer side; reference |
