Symo3000 Piccolo Nova Case 15mm LH NP - Zinc Alloy Nickel Plated

Article details
RefinementNickel plated
Area of application
For divided profile rod Ø 6 mmFor cylinder cores that are inserted from the front on site

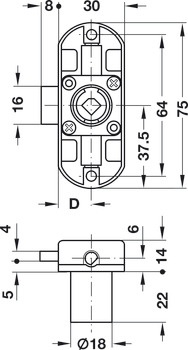

Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mmDue to the three different backsets (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.
with key
No
Order reference
Order cylinder rosette and Hospa Ø 3.0 mm screws separately
