Symo3000 Std Nova Lockcase 40/8mm NP - Zinc Alloy Nickel Plated
Product Code: 224.65.600
Symo3000 Std Nova Lockcase 40/8mm NP - Zinc Alloy Nickel Plated
Product Code: 224.65.600
2 In stock
£9.14
Ex. VAT: £7.62
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £9.14 | — |
| 5 – 9 | £8.69 | Save 5% |
| 10 – 19 | £8.23 | Save 10% |
| 20+ | £7.31 | Save 20% |
- Products Description
- Technical Specifications

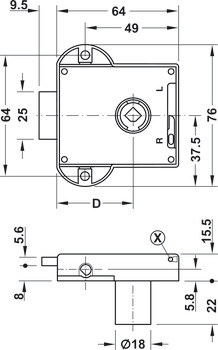

- Dimensions
Article details
VersionUnhanded
MountingLeft hand or right hand
RefinementNickel plated
Area of application
For continuous profile rod Ø 6 mm or 8 mmFor cylinder cores that are inserted from the front on site
Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mmDue to the three different backseats (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.Note: Standard Nova, backset 40 mm is prepared for a continuous profile rod.
Functionality
The locking direction Ⓧ can also be reversed when the lock is already installed, in this case the lock must be locked.
with key
No
Order reference
Order cylinder rosette and Hospa Ø 3.0 mm screws separately
VersionUnhanded
MountingLeft hand or right hand
RefinementNickel plated
Area of application
For continuous profile rod Ø 6 mm or 8 mmFor cylinder cores that are inserted from the front on site
Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mmDue to the three different backseats (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.Note: Standard Nova, backset 40 mm is prepared for a continuous profile rod.
Functionality
The locking direction Ⓧ can also be reversed when the lock is already installed, in this case the lock must be locked.
with key
No
Order reference
Order cylinder rosette and Hospa Ø 3.0 mm screws separately
| Material | Zinc alloy |
| Colour/Finish | Nickel plated |
| Installation | For screw fixing; reference |
| Cylinder shape | prepared for round cylinder |
| Backset | 40 mm |
| Cylinder housing length | 22 mm |
