Symo3000 Cent Rotary Lock Sgl 22/12mm NP - Zinc Alloy
Product Code: 234.98.650
Symo3000 Cent Rotary Lock Sgl 22/12mm NP - Zinc Alloy
Product Code: 234.98.650
218 In stock
£3.84
Ex. VAT: £3.20
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £3.84 | — |
| 10 – 19 | £3.65 | Save 5% |
| 20 – 49 | £3.46 | Save 10% |
| 50+ | £3.07 | Save 20% |
- Products Description
- Technical Specifications

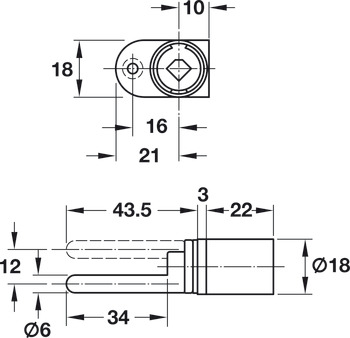

- Dimensions
Area of application
For on-site installation of cylinder coresFor installation in the front panel
Version
With lifting pin
Cylinder Ø
18 mm
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.
with key
No
Order reference
Order Symo 3000 cylinder cores and Hospa Ø 3.5 mm countersunk screws
Additional information attributes
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key.
For on-site installation of cylinder coresFor installation in the front panel
Version
With lifting pin
Cylinder Ø
18 mm
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.
with key
No
Order reference
Order Symo 3000 cylinder cores and Hospa Ø 3.5 mm countersunk screws
Additional information attributes
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key.
| Material | Zinc alloy |
| Closure travel | 180° |
| Installation | For installation in the front panelfor screw fixing; reference |
| Cylinder shape | prepared for round cylinder |
| Diameter | 18 mm |
| Cylinder housing length | 22 mm |
