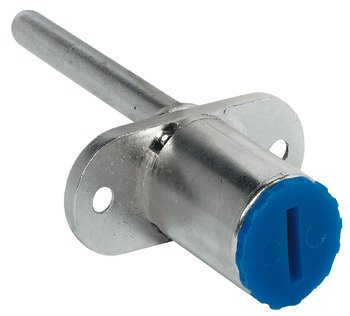

Symo3000 Cent Rotary Lock Dbl 22/12mm NP - Zinc Alloy Nickel Plated
Product Code: 234.98.600
Symo3000 Cent Rotary Lock Dbl 22/12mm NP - Zinc Alloy Nickel Plated
Product Code: 234.98.600
314 In stock
£4.06
Ex. VAT: £3.38
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £4.06 | — |
| 10 – 19 | £3.85 | Save 5% |
| 20 – 49 | £3.65 | Save 10% |
| 50+ | £3.24 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application
For on-site installation of cylinder cores and in the front panel
Version
With lifting pin
Cylinder Ø
18 mm
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.
with key
No
Order reference
Only use Premium 20 cylinder cores with restricted rotation and direction (DIN right) when using pin tumbler cylinder removable cores.
Additional information attributes
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.
For on-site installation of cylinder cores and in the front panel
Version
With lifting pin
Cylinder Ø
18 mm
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.
with key
No
Order reference
Only use Premium 20 cylinder cores with restricted rotation and direction (DIN right) when using pin tumbler cylinder removable cores.
Additional information attributes
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.

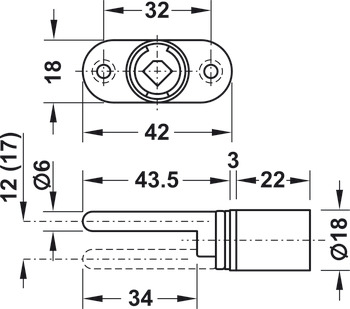

| Material | Zinc alloy |
| Colour/Finish | Nickel plated |
| Closure travel | 180° |
| Installation | For installation in fixed front panelfor screw fixing; reference |
| Cylinder shape | prepared for round cylinder |
| Diameter | 18 mm |
| Cylinder housing length | 22 mm |
