Cylinder Cam Lock 22mm 60-001 Dir.A - Zinc Alloy
Product Code: 235.72.401
Cylinder Cam Lock 22mm 60-001 Dir.A - Zinc Alloy
Product Code: 235.72.401
65 In stock
£10.33
Ex. VAT: £8.61
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £10.33 | — |
| 2 – 4 | £9.78 | Save 5% |
| 5+ | £8.70 | Save 16% |
- Products Description
- Technical Specifications
Article details
90° with key trap; key can only be removed in locked position180° without key trap; key can be removed in locked and unlocked positionClosure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HClosure direction 1 can be altered to 2 - 8
Locking systemStandard profile

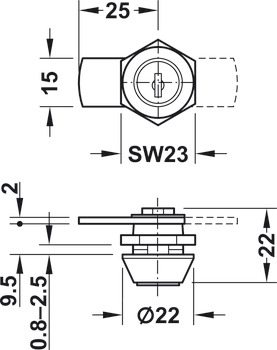

For door thickness≥ 0.8 – ≤ 2.5 mm
Area of application
For metal furniture
Version
With fixed plate cylinderWith straight locking cam
Type of locking
with 6 plate levers
with key
Yes
Additional information attributes
No master key possible
90° with key trap; key can only be removed in locked position180° without key trap; key can be removed in locked and unlocked positionClosure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HClosure direction 1 can be altered to 2 - 8
Locking systemStandard profile
For door thickness≥ 0.8 – ≤ 2.5 mm
Area of application
For metal furniture
Version
With fixed plate cylinderWith straight locking cam
Type of locking
with 6 plate levers
with key
Yes
Additional information attributes
No master key possible
| Material | Zinc alloy |
| Supplied with | 1 Cam lockAccessories: 2x keys, 1x cam lock, 1x nut and 1x cam(pre-mounted) |

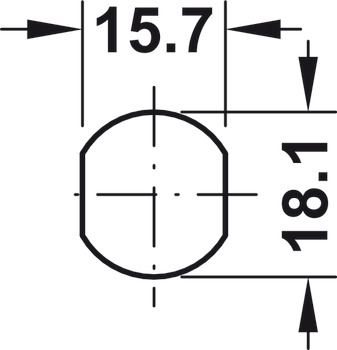

| Installation | For screw fixing with hexagon nut (Hole pattern 18.1 x 15.7 mm) |
| Cylinder shape | round cylinder |
