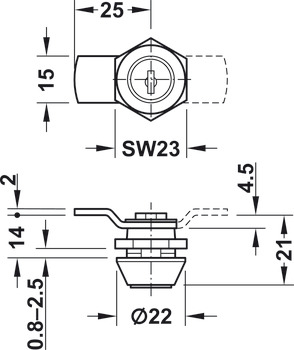

Cylinder Cam Lock Crnk 22mm Differ Dir.1 - Zinc Alloy
Product Code: 234.64.400
Cylinder Cam Lock Crnk 22mm Differ Dir.1 - Zinc Alloy
Product Code: 234.64.400
125 In stock
£11.02
Ex. VAT: £9.18
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £11.02 | — |
| 2 – 4 | £10.43 | Save 5% |
| 5+ | £9.28 | Save 16% |
- Products Description
- Technical Specifications
Article details
90° with key trap; key can only be removed in locked position180° without key trap; key can be removed in locked and unlocked positionClosure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HClosure direction 1 can be altered to 2 - 8
For use with 0.8-2.5 mm sheet metalWithout key trap; key can be removed in locked and unlocked position
Locking systemStandard profile
Closing direction1 (2 – 8)
For door thickness≥ 0.8 – ≤ 2.5 mm
Version
with fixed plate cylinderWith cranked locking cam
Type of locking
with 6 plate levers
with key
Yes
Additional information attributes
No master key possible
90° with key trap; key can only be removed in locked position180° without key trap; key can be removed in locked and unlocked positionClosure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HClosure direction 1 can be altered to 2 - 8
For use with 0.8-2.5 mm sheet metalWithout key trap; key can be removed in locked and unlocked position
Locking systemStandard profile
Closing direction1 (2 – 8)
For door thickness≥ 0.8 – ≤ 2.5 mm
Version
with fixed plate cylinderWith cranked locking cam
Type of locking
with 6 plate levers
with key
Yes
Additional information attributes
No master key possible
| Material | Zinc alloy |
| Closure travel | 180° (reversible, without key trap) |
| Supplied with | 1 Cam lock2 Keys1 Locking cam (pre-mounted)1 Hexagonal nut1 Lock washer |
| Installation | For screw fixing with hexagonal nut(aperture pattern 18.1 x 15.7 mm) |
| Cylinder shape | round cylinder |
