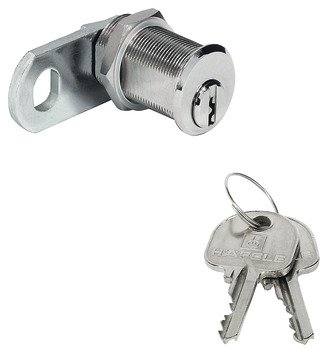

Cylinder Cam Lock 21mm PNP H1 Dir.A - Brass Nickel Plated, Polished Nickel Plated
Product Code: 235.92.814
Cylinder Cam Lock 21mm PNP H1 Dir.A - Brass Nickel Plated, Polished Nickel Plated
Product Code: 235.92.814
831 In stock
£37.28
Ex. VAT: £31.07
This product is part of a range with 7 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £37.28 | — |
| 2 – 3 | £35.33 | Save 5% |
| 4+ | £31.40 | Save 16% |
- Products Description
- Technical Specifications
Article details
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HWith key trap; key can only be removed in locked position
Locking systemStandard profile
For door thickness≤ 21 mm
Version
Straight locking cam
Type of locking
with 5 pin tumblers
with key
Yes
Order reference
Order spacer bushes and anti-twist washer separately
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or HWith key trap; key can only be removed in locked position
Locking systemStandard profile
For door thickness≤ 21 mm
Version
Straight locking cam
Type of locking
with 5 pin tumblers
with key
Yes
Order reference
Order spacer bushes and anti-twist washer separately
| Material | Brass |
| Colour/Finish | Nickel plated, Polished Nickel Plated |
| Threading | length L21 mm |
| Closure travel | 90° (reversible, with key trap) |
| Supplied with | 1 Cam lock2 Keys1 Locking cam3 Hexagon nuts1 WasherSecurity pass and locking plan with locking systems |
| Installation | For screw fixing with hexagonal nut(aperture pattern 19 x 16 mm) |
| Cylinder shape | round cylinder |
