Cylinder CamLock w Trap D19mm Dif Dir.A - Housing: Zinc Alloycylinder: Brass Nickel Plated, Matt
Product Code: 235.03.200
Cylinder CamLock w Trap D19mm Dif Dir.A - Housing: Zinc Alloycylinder: Brass Nickel Plated, Matt
Product Code: 235.03.200
66 In stock
£40.25
Ex. VAT: £33.54
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £40.25 | — |
| 2 – 3 | £38.14 | Save 5% |
| 4+ | £33.90 | Save 16% |
- Products Description
- Technical Specifications

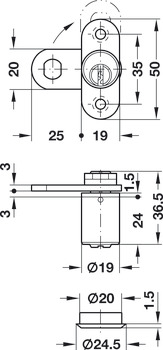

- Dimensions
Article details
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or H
Locking systemStandard profile
For door thickness≤ 21 mm
Version
Straight cam
Cylinder Ø
19 mm
Type of locking
with 5 pin tumblers
with key
Yes
Additional information attributes
Master key and general master key systems: Please discuss with our sales staff before ordering, state closure direction required
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure direction A can be altered to D, F or GClosure direction B can be altered to C, E or H
Locking systemStandard profile
For door thickness≤ 21 mm
Version
Straight cam
Cylinder Ø
19 mm
Type of locking
with 5 pin tumblers
with key
Yes
Additional information attributes
Master key and general master key systems: Please discuss with our sales staff before ordering, state closure direction required
| Material | Housing: Zinc alloycylinder: Brass |
| Colour/Finish | Nickel plated, Matt |
| Closure travel | 90° (reversible, with key trap) |
| Supplied with | 1 cam lock2 keys1 cylinder rosette1 cam (pre-mounted)2 fixing nuts (pre-mounted)Security pass and locking map with master key system |
| Installation | For screw fixing with screw-on plate |
| Cylinder shape | round cylinder |
| Diameter | 19 mm |
| Cylinder length | 24 mm |
