Accuride 1432 Pivot Sld DrRun Black 456mm - /finish

Article details
Cable system for synchronised slide operationOrder hinges and carrier strip set separately
Installed length = Minimum carcase depth required to install fittingExtension length = Maximum door width can be withdrawn inside the carcaseOrder qty: 1 pair per door

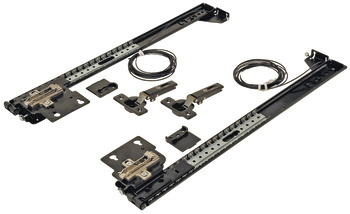

SetSet with tracks
Number of doors1
For door width915 – 2,000 mm
For door height255 – 660 mm
For door weight≤34 kg
VersionHinge carrier strip set can be shortenedWith cable system for synchronised running of left and right runners
Area of application

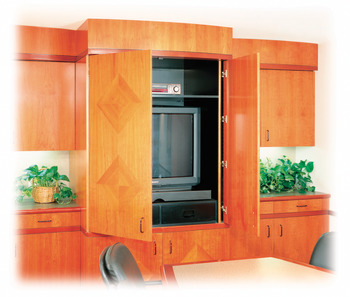

Inset and overlay cabinet doors, depending on hinges used
For door material
Wood
For door thickness
19 – 32 mm
Steel, Black, Zinc plated
Order reference
Hinge carrier strips and hinge sets to be ordered separately
Configuration required
Configuration required
Configuration required
Additional information attributes
ust not be subjected to loads in the open, not pushed-in position.It must be continuously guided and pushed-in by hand during the entire opening procedure.
