Pocket Hideaway Door Piston w Magnet ZP - Steel
Product Code: 938.40.009
Pocket Hideaway Door Piston w Magnet ZP - Steel
Product Code: 938.40.009
1 In stock
£70.00
Ex. VAT: £58.33
- Products Description
- Technical Specifications

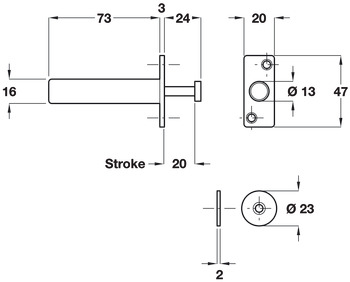

- Dimensions
Article details

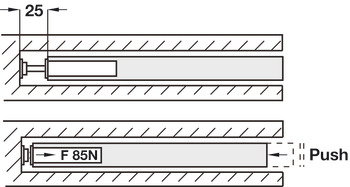

Can be installed into either opening edge of door or into the wallWhen door is in open position - light pressure against door edge will release bufferExtension force max. 85 NIntegrated spring pushed door out of the pocket wall at a max. of 85 N, enough to make flush pull accessibleMagnetic piston end allows door to be held open safely engaging with a small metal plate supplied20 mm stroke
Door position
for rear door
Order reference
Pocket Hideaway door system and accessories to be ordered separately
Can be installed into either opening edge of door or into the wallWhen door is in open position - light pressure against door edge will release bufferExtension force max. 85 NIntegrated spring pushed door out of the pocket wall at a max. of 85 N, enough to make flush pull accessibleMagnetic piston end allows door to be held open safely engaging with a small metal plate supplied20 mm stroke
Door position
for rear door
Order reference
Pocket Hideaway door system and accessories to be ordered separately
| Material | Steel |
| Supplied with | Fixings included |
| Height | 47 mm |
| Width | 20 mm |
