Slido W-Fo32 100T FitSet wo Btm Trk Bas - /finish

Article details

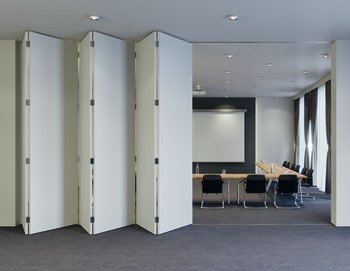

For flexible room partitioning and screensOne fitting for corner and centre suspension
Internal opening width:1-sided system 6 m2-sided system 12 m
SetSet without tracks
For door material
Wood
Suitable for
Flexible room or visual separation
Number of doors per system max.
>4
For door height
≤3,500 mm
For door thickness
35 – 60 mm
For door weight
≤100 kg
For door width
500 – 1,000 mm
System width 1-sided
6 m
System width 2-sided
12 m
Running system
Concealed in track
Controller installation options
Ceiling installation
Adjustment facility
Running track: Aluminium
Guide track: Aluminium
Running gear: Steel
Roller: Plastic, Silver coloured, anodized
Häfele Lifetime Guarantee
10 years
Order reference
Please order running tracks, guide tracks, hinges and accessories separatelyAlso available for glass; please contact our Estimating Team for further informationTel: 0800 171 2907 or email estimating@hafele.co.uk
Additional information attributes
Please see installation instructions for exact calculation of door width and required door preparation details.The number of flange hinges depends on the height of the door leaf.The corner suspension version of Slido-Fold systems always requires bottom guide tracks. Only systems with max. 2 doors on both sides are an exception. These systems do not necessarily require bottom guide tracks.Installation without (standard) or with bottom track is optional with centre suspension version.In the version without a floor guide, we recommend setting the gap size between the floor and the bottom edge of the door to 7 to 12 mm, since the door leaf package could otherwise come into contact with the floor because of the slightly swinging folding movement if the gap dimension is too small.
