Hawa Centrefold 80H Fitting Set - Set 1

Article details

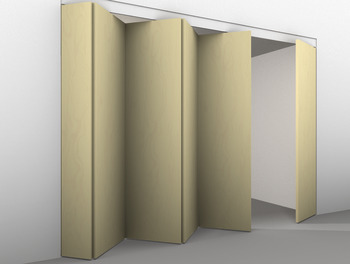

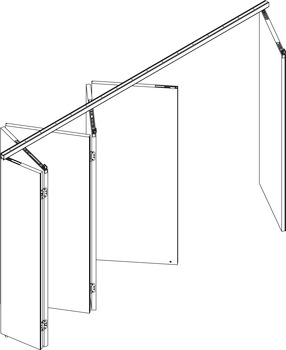

For heavy centre-fold walls for residential or commerical applicationsA pivot bearing secures the first panel in the set, the others attach by means of stainless steel hinges that bring the panels closer together and minimise panel stacking requirementsLeft and right hand, inwards and or outwards opening installations all use the same componentsA communicating pivot door can be added to the panel stack or the other opposing endLight and quiet runningPanel stack stores compactlyInstallation drawing reference 19587
Area of applicationInterior centre folding doors
SetSet without tracks
SpringCentre suspension
For door material
Wood
Number of doors per system max.
>4
For door thickness
35 – 45 mm
For door weight
≤80 kg
For door width
500 – 900 mm
System width 1-sided
6 m
System width 2-sided
12 m
Running system
Concealed in track
Controller installation options
Ceiling installation
Adjustment facility
Version
Hinge with heavy duty bearingswithout bottom guide track
Support flange connection
Carriage
Order reference
Please order rails, hinges and accessories separately.
