Hawa Junior 80B Mod FitSet 1Dr Bolt Std 940.80.004

Hawa Junior 80B Mod FitSet 1Dr Bolt Std

Product Code: 940.80.004

Hawa Junior 80B Mod FitSet 1Dr Bolt Std

Product Code: 940.80.004
Download Brochure
Browse more Bottom Guides
13 In stock
£451.82
Ex. VAT: £376.52
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
QuantityUnit Price (inc. VAT)You Save
1 – 1£451.82—
2 – 3£428.04Save 5%
4+£380.48Save 16%
Buy 4+ and save 16%
Order before 3pm for next-day dispatch
  • Products Description
  • Technical Specifications
Article details

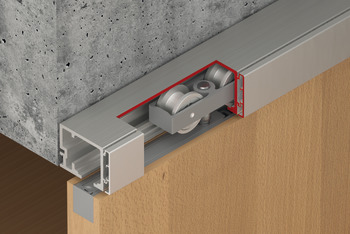

Junior 80/B is a vertically adjustable low headroom sliding door fittingIdeal for pocket door solutionsEasier installation due to a clever new suspension mechanism - click and clear
ModelJunior 80/B
Soft closing mechanismWithout soft and self closing mechanism, with track buffers on both sides
For door weight≤80 kg
For door width\t\t
For door materialWood
Controller installation optionsCeiling installation, Wall mounting, Integrated ceiling installation
For door thickness\t\t
Number of doors1
Suitable for
Minimum installation height
Number of doors per system max.
1 to 2
For door height
≤4,000 mm
Door processing
With recess
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|2|-|1|0|-|1|3
Order reference
Tracks, soft and self close mechanisms, accessories and fixings to be ordered separately
Configuration required
Configuration required
Configuration required
Additional information attributes
Available with 20 mm longer bolt version which allows the track to be covered from below with removable ceiling elements

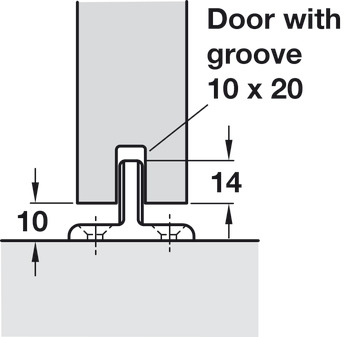

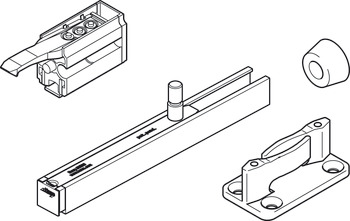

Supplied with Fitting includes 2 x Track stopper, for adjustable mounting in top track, zinc alloy, 2 x Hawa-Junior 80/B modified trolley hanger, sleeve bearing mounted Ø 34 mm high-grade polyamide tandem rollers, with 25 x 215 x 22 mm retainer profile and suspension plate, fixings included, 1 x Guide, rattle proof, for screw mounting to floor, black plastic, 24 x 60 x 36 mm, 1 x Rubber buffer, Ø 19 x 10 mm, for screw fixing

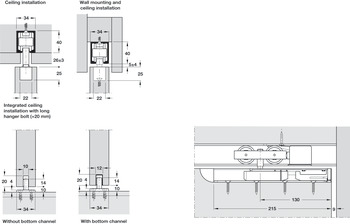

Installation drawing reference 24484This version of HAWA-Junior 80/B, compared to the standard HAWA-Junior 80/B has been modified with enhanced featuresLow headroom applications: Around 1 mm gap between lower side of top track and top side of sliding door is now possible for a more pleasing appearanceHeight can easily be adjusted from the leading edge without needing to remove the suspension unitVery easy and efficient installation due to pre-fitted hanger bolt, integrated wedge mechanism and cover cap; Suspension with recessed support profile and installation-friendly suspension carriage with integrated metal cover cap
