Hawa Junior 120GP FitSet 1Dr

Article details

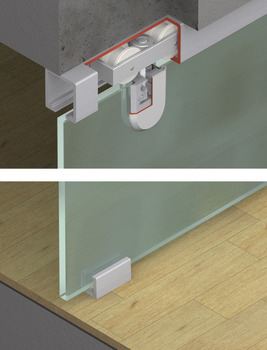

Vertically adjustable sliding door fitting for low and restricted headroom applicationsTandem rollers made of high-grade polyamide, mounted in an aluminium carriage, ensures exceptionally silent actionAll parts are corrosion resistantTop of the glass panel close to underside of top trackChoice of bottom control - either clear threshold or floor channel to provide added stability for wider doors
Suitable for
Minimum installation height
Number of doors per system max.
1 to 2
For glass type
Tempered safety glass, Laminated glass
For door height
≤2,300 mm
Door processing
With glass preparation
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|3|-|1|0|-|1|3
Order reference
Tracks, accessories and Hospa Ø 4.0 mm countersunk screws to be ordered separately
Configuration required
Configuration required
Configuration required
Additional information attributes
With 2-leaf sliding doors it has to be ensured that the glass doors are not butting against each other.Use guide tracks with end stop.
