Hawa Junior 80/Z FitSet 1Dr w SoftMove
Product Code: 940.80.111
Hawa Junior 80/Z FitSet 1Dr w SoftMove
Product Code: 940.80.111
17 In stock
£554.47
Ex. VAT: £462.06
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £554.47 | — |
| 5 – 9 | £525.29 | Save 5% |
| 10+ | £466.92 | Save 16% |
- Products Description
- Technical Specifications
Article details
Junior 80 is a vertically adjustable sliding door fitting for interior doors exceptionally light and silent actionAll parts of corrosion resistant Ideal for cavity applicationsSuitable for Hawa-Symmetric 80/Hawa-Telescopic 80 2/ Hawa-Telescopic 80 3
If the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 17689
ModelJunior 80/Z
For door weight≤80 kg
For door width≤3,000 mm
For door materialWood
Controller installation optionsCeiling installation, Wall mounting, Wall pocket solution
Number of doors1
Number of doors per system max.
1 to 2
For door height
≤4,000 mm
Note on door width
The max. door width for the pocket door solution is 1,500 mm.
Door processing
for screw fixing
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|2|-|1|0|-|1|3
Order reference
Tracks, fitting sets, accessories and fixings to be ordered separately
Configuration required
Configuration required
Configuration required
Additional information attributes
No end cap is available for ceiling installation with fascia on both sides.A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
Junior 80 is a vertically adjustable sliding door fitting for interior doors exceptionally light and silent actionAll parts of corrosion resistant Ideal for cavity applicationsSuitable for Hawa-Symmetric 80/Hawa-Telescopic 80 2/ Hawa-Telescopic 80 3
If the sliding door is required to stop at both ends we recommend installing an additional track stopperInstallation drawing reference 17689
ModelJunior 80/Z
For door weight≤80 kg
For door width≤3,000 mm
For door materialWood
Controller installation optionsCeiling installation, Wall mounting, Wall pocket solution
Number of doors1
Number of doors per system max.
1 to 2
For door height
≤4,000 mm
Note on door width
The max. door width for the pocket door solution is 1,500 mm.
Door processing
for screw fixing
Standard
Certified in compliance with EN 1527:2013
Classification in compliance with EN 1527
-|6|2|-|1|0|-|1|3
Order reference
Tracks, fitting sets, accessories and fixings to be ordered separately
Configuration required
Configuration required
Configuration required
Additional information attributes
No end cap is available for ceiling installation with fascia on both sides.A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).

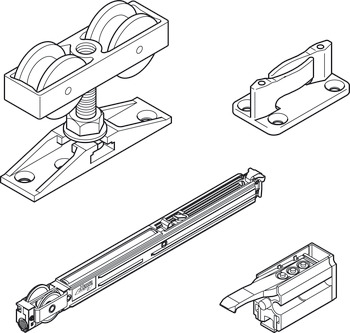

| Supplied with | Set with Softmove 80 consists of 2 x Track stopper, for adjustable mounting in top track, zinc alloy, black painted housing, 2 x Junior 80/Z trolley hangers, sleeve bearing mounted ⌀ 34 mm high grade polyamide tandem rollers, aluminium carriage, fixings included, 1 x Guide, rattle proof, for screw mounting to floor, black plastic, 24 x 60 x 34 mm, 1 x Rubber buffer, ⌀ 19 x 10 mm, for screw fixing, HAWA-SoftMove 80, 30 x 336 x 24 mm |

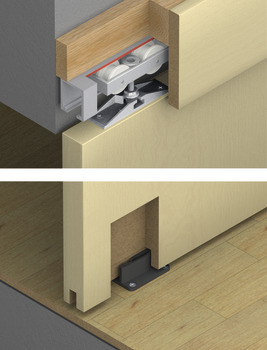

| Installation | Suspension with screwed on two-way suspension; reference; and removal of the door possible from the door surface or door edge |
