Hawa Variofold 80H Fitting Set 1 - /finish

Article details

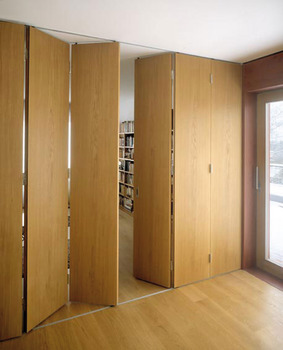

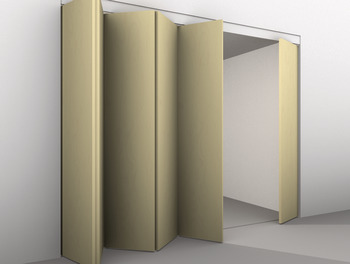

For residential or commerical top hung end wall folding wall systemsA pivot bearing secures the first panel in the set, the others attach by means of stainless steel hinges that bring the panels closer together and minimise panel stacking requirementsLeft and right hand, inwards or outwards opening installations all use the same componentsA communicating pivot door can be added to the panel stack or the opposing endLight and quiet runningPanel stack stores compactlyInstallation drawing reference 19586
SpringCorner suspension
For door material
Wood
Number of doors per system max.
>4
For door thickness
35 – 45 mm
For door weight
≤80 kg
For door width
500 – 900 mm
System width 1-sided
6 m
System width 2-sided
12 m
Running system
Concealed in track
Controller installation options
Ceiling installation
Adjustment facility
Version
clear threshold guide,Hinge with heavy duty bearings
Support flange connection
brackets
Aluminium
Plastic
Order reference
Please order rails, hinges and accessories separately.
Additional information attributes

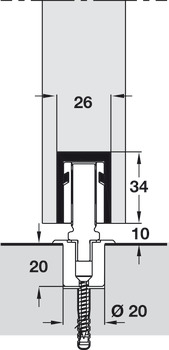

Bottom guide tracks must be used for Hawa-Variofold systems. For systems with 2 doors on both sides and up to a width of max. 3.6 m the bottom guide track is not required.
