DBLIFT-0019 Mechanical Lift Black - Steel Black, Powder Coated

Article details
For mounting inside cabinet or work stationVersatile design for lifting any item within weight and size limitationsSuitable for screens weighing 2.5 - 6.5 kg and up to 450 mm highRaises to fully extended position in under 2 secondsWith damper and weights to control movement

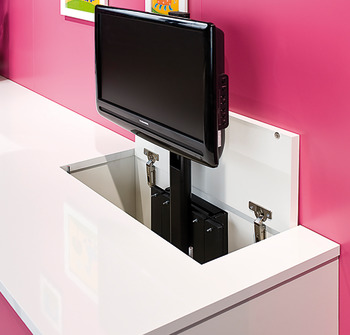

Lowers flat screen monitors, pictures or mirrors into cabinetsSwivelling range +/- 112.5°Choice of 18° tilt or fixed VESA brackets, to be ordered separately
Application
For installation in furniture, For lifting and lowering of flat screen monitors
Features
Adjustement facility by adding or removing weights, manually triggered push-to-lift mechanism (triggering distance 2 mm)
For screen size
Diagonal screen size max. 22', screen height max. 450 mm
VESA standard
75 x 75 mm and 100 x 100 mm
Version
Rotates manually
Rotation range
112.5 °
Version
Rotates manuallyRelease distance 2 mm
Order reference
Please order rigid or tilting bracket separately.Additional weight packs are required for lightweight flat screen monitors
