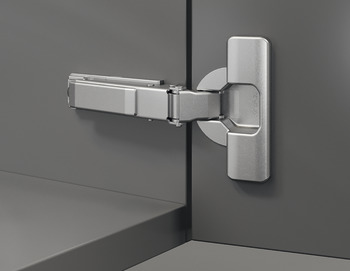

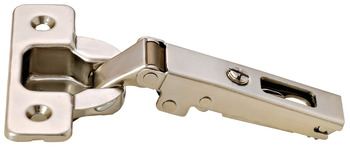

Duomatic 110D Hinge Qck SF FO Hos SNP - Steel
Product Code: 329.17.900
Duomatic 110D Hinge Qck SF FO Hos SNP - Steel
Product Code: 329.17.900
793 In stock
£8.03
Ex. VAT: £6.69
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £8.03 | — |
| 10 – 24 | £7.63 | Save 5% |
| 25 – 49 | £7.22 | Save 10% |
| 50+ | £6.43 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Products Description
- Technical Specifications
- Dimensions
Area of application: For opening doors without handles
Function: With automatic opening mechanism (Push)
Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Opening angle: 110°
Cup drilling depth: 11 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 48/6
Adjustment facility: Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
Installation: Quick fitting hinge arm
Order reference: Please order mounting plate 329.71.513, door catch and accessories seperatelyOrder Hospa Ø 3.5 mm flat head screws separately
Function: With automatic opening mechanism (Push)
Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Opening angle: 110°
Cup drilling depth: 11 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 48/6
Adjustment facility: Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
Installation: Quick fitting hinge arm
Order reference: Please order mounting plate 329.71.513, door catch and accessories seperatelyOrder Hospa Ø 3.5 mm flat head screws separately
| Adjustment facility | Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm |
| Area of application | For opening doors without handles |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With automatic opening mechanism (Push) |
| Order reference | Please order mounting plate 329.71.513, door catch and accessories seperatelyOrder Hospa Ø 3.5 mm flat head screws separately |
| Material | Steel |
| Opening angle | 110° |
| Installation | Quick fitting hinge arm |
| Drilling pattern | 48/6 |
| Cup drilling depth | 11 mm |
