Tiomos 110D Hinge Clk FO SF wo SC NP - Steel Nickel Plated
Product Code: 348.31.601
Tiomos 110D Hinge Clk FO SF wo SC NP - Steel Nickel Plated
Product Code: 348.31.601
3,282 In stock
£4.10
Ex. VAT: £3.42
This product is part of a range with 10 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £4.10 | — |
| 5 – 9 | £3.90 | Save 5% |
| 10 – 24 | £3.70 | Save 10% |
| 25+ | £3.29 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Article details
For standard applicationsØ 35 mm cup
With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)With opening mechanism for comfortable opening of front panels without handlesOptimum gap dimensions up to 24 mm door thickness (for door thicknesses 24 mm and above, a trial fitting is recommended)

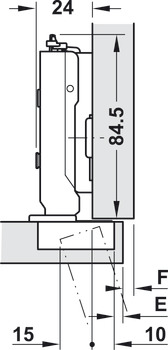

Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.
Area of applicationfor standard applications
Concealed hinge versionFull overlay
Crank typeCranked
For door materialWood
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
1207
1208
Additional information attributes
The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.For hinges with opening mechanism please order Grass Tipmatic separately.
For standard applicationsØ 35 mm cup
With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)With opening mechanism for comfortable opening of front panels without handlesOptimum gap dimensions up to 24 mm door thickness (for door thicknesses 24 mm and above, a trial fitting is recommended)
Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.
Area of applicationfor standard applications
Concealed hinge versionFull overlay
Crank typeCranked
For door materialWood
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
1207
1208
Additional information attributes
The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.For hinges with opening mechanism please order Grass Tipmatic separately.
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Installation | Door on cabinet without tools with clip system |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
