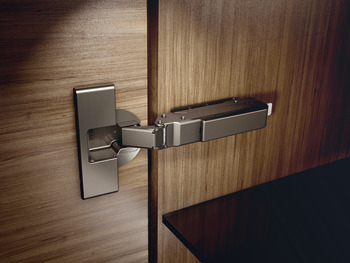

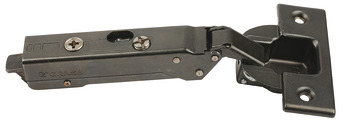

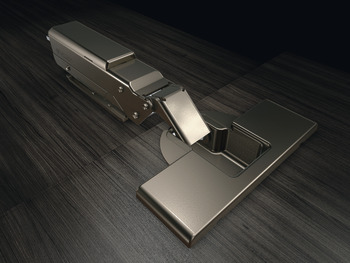

Tiomos 110D Hinge Clk FO SF w SC Night - Steel Nickel Plated

Article details
For standard applicationsØ 35 mm cup
With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)With opening mechanism for comfortable opening of front panels without handlesOptimum gap dimensions up to 24 mm door thickness (for door thicknesses 24 mm and above, a trial fitting is recommended)
Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.
Area of applicationfor standard applications
Concealed hinge versionFull overlay
Crank typeCranked
For door materialWood
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
1207
1208
Additional information attributes
The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.For hinges with opening mechanism please order Grass Tipmatic separately.
