Tiomos 155D Hinge Clk FO SF wo SC NP - Zinc Alloy Nickel Plated
Product Code: 348.32.601
Tiomos 155D Hinge Clk FO SF wo SC NP - Zinc Alloy Nickel Plated
Product Code: 348.32.601
285 In stock
£9.76
Ex. VAT: £8.13
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £9.76 | — |
| 5 – 9 | £9.28 | Save 5% |
| 10 – 24 | £8.78 | Save 10% |
| 25+ | £7.81 | Save 20% |
- Products Description
- Technical Specifications

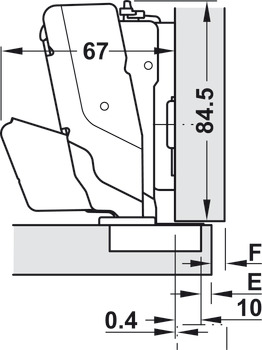

- Dimensions
Article details
For standard applicationsØ 35 mm cupZero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelvesWith finger protection
Up to 32 mm door thickness (for door thicknesses over 29 mm, a trial mounting is recommended)Shallow cup drilling depth only 10 mm
Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm
Area of applicationfor cabinets with internal pull outs or extending trays
Concealed hinge versionFull overlay
Crank typeHigh Cranked
For door materialWood
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
Order Hospa Ø 3.5 countersunk screws separately
1477
Additional information attributes
Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm
For standard applicationsØ 35 mm cupZero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelvesWith finger protection
Up to 32 mm door thickness (for door thicknesses over 29 mm, a trial mounting is recommended)Shallow cup drilling depth only 10 mm
Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm
Area of applicationfor cabinets with internal pull outs or extending trays
Concealed hinge versionFull overlay
Crank typeHigh Cranked
For door materialWood
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
Order Hospa Ø 3.5 countersunk screws separately
1477
Additional information attributes
Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm
| Material | Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 155° |
| Installation | Door on cabinet without tools with clip system |
| Cup drilling depth | 10 mm |
