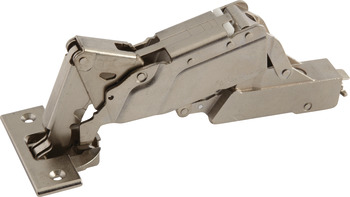

Tiomos 155D Hinge Clk HO SF w SC NP - Cup: Zinc Alloy, Hinge Arm: Steel
Product Code: 348.32.802
Tiomos 155D Hinge Clk HO SF w SC NP - Cup: Zinc Alloy, Hinge Arm: Steel
Product Code: 348.32.802
75 In stock
£12.25
Ex. VAT: £10.21
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £12.25 | — |
| 5 – 9 | £11.64 | Save 5% |
| 10 – 24 | £11.03 | Save 10% |
| 25+ | £9.80 | Save 20% |
- Products Description
- Technical Specifications

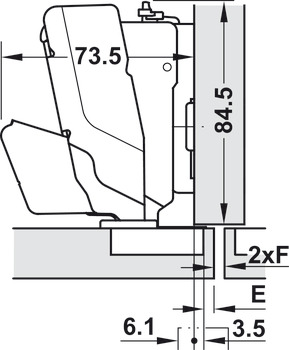

- Dimensions
Area of application: Zero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelves
Version: With finger protection
Function: With soft closing mechanism
Model No.: F028138563217
Concealed hinge version: Half overlay mounting/twin mounting
Crank type: Cranked
For door material: Wood
Door processing for assembly: With cup drilling
Material: Cup: Zinc alloy, Hinge arm: Steel
Opening angle: 155°
Cup drilling depth: 10 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, (height adjustment depending on mounting plate)
Installation: Door on cabinet without tools with clip system
Order reference: Order Hospa Ø 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately
Version: With finger protection
Function: With soft closing mechanism
Model No.: F028138563217
Concealed hinge version: Half overlay mounting/twin mounting
Crank type: Cranked
For door material: Wood
Door processing for assembly: With cup drilling
Material: Cup: Zinc alloy, Hinge arm: Steel
Opening angle: 155°
Cup drilling depth: 10 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, (height adjustment depending on mounting plate)
Installation: Door on cabinet without tools with clip system
Order reference: Order Hospa Ø 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately
| Adjustment facility | Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, (height adjustment depending on mounting plate) |
| Area of application | Zero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelves |
| Concealed hinge version | Half overlay mounting/twin mounting |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With soft closing mechanism |
| Model No. | F028138563217 |
| Order reference | Order Hospa Ø 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately |
| Version | With finger protection |
| Material | Cup: Zinc alloy, Hinge arm: Steel |
| Opening angle | 155° |
| Installation | Door on cabinet without tools with clip system |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 10 mm |
