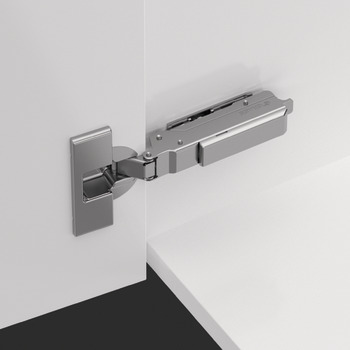

Tiomos 95D Hinge Clk INS SF wo SC NP - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 348.34.603
Tiomos 95D Hinge Clk INS SF wo SC NP - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 348.34.603
633 In stock
£9.12
Ex. VAT: £7.60
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £9.12 | — |
| 5 – 9 | £8.66 | Save 5% |
| 10 – 24 | £8.21 | Save 10% |
| 25+ | £7.30 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For standard application
Function: Without soft closing mechanism
Model No.: F045138508228
Concealed hinge version: Inset
Crank type: High Cranked
For door material: Wood
Door processing for assembly: With cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Colour/finish: nickel plated
Opening angle: 95°

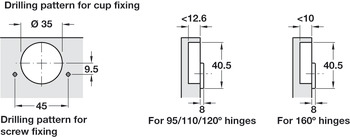

Cup drilling depth: 12.60 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation: Door on cabinet without tools with clip system
Installation note: Set back mounting plate screw-on position by door thickness +1.5 mm.
Function: Without soft closing mechanism
Model No.: F045138508228
Concealed hinge version: Inset
Crank type: High Cranked
For door material: Wood
Door processing for assembly: With cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Colour/finish: nickel plated
Opening angle: 95°
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation: Door on cabinet without tools with clip system
Installation note: Set back mounting plate screw-on position by door thickness +1.5 mm.
| Adjustment facility | Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate |
| Area of application | For standard application |
| Concealed hinge version | Inset |
| Crank type | High Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | Without soft closing mechanism |
| Installation note | Set back mounting plate screw-on position by door thickness +1.5 mm. |
| Model No. | F045138508228 |
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 95° |
| Installation | Door on cabinet without tools with clip system |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.60 mm |
