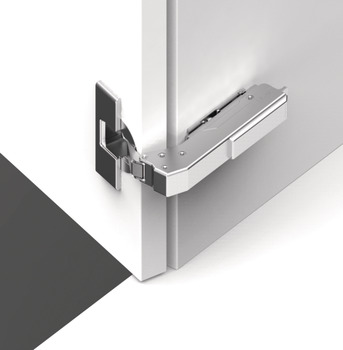

Tiomos 110D Post Hinge Clk SF w SC NP 348.37.800

Tiomos 110D Post Hinge Clk SF w SC NP - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated

Name: Tiomos 110D Post Hinge Clk SF w SC NP - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Brand: Hafele
SKU: 348.37.800
Price: 13.51 GBP
Availability: InStock

Product Code: 348.37.800

Tiomos 110D Post Hinge Clk SF w SC NP - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated

Product Code: 348.37.800

Download Brochure

Browse more Concealed Hinges

581 In stock

£13.51

Ex. VAT: £11.26

Colour/finish:

Model No.:

Cup fixing:

Function:

Drilling pattern:

This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.

Quantity	Unit Price (inc. VAT)	You Save
1 – 4	£13.51	—
5 – 9	£12.83	Save 5%
10 – 24	£12.16	Save 10%
25+	£10.81	Save 20%

Products Description
Technical Specifications
Dimensions

Article details
For wooden doors
With or without soft closing mechanism integrated in hinge arm
Area of applicationFor wooden doors
Concealed hinge versionBlind corner application
Crank typeStraight
For door materialWood
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Cup fixingfor screw fixing
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate
Order reference
Mounting plate 348.38.513 and Hospa Ø 3.5 mm countersunk screws to be ordered separately
1486
Additional information attributes
Use mounting plate with 3 mm for flush front design of door and blind corner.

Material	Cup: Steel, Hinge arm: Zinc alloy
Colour/Finish	nickel plated
Opening angle	110°
Installation	Door to cabinet without tools (clip system)
Drilling pattern	45/9.5

Cup drilling depth	12.6 mm
