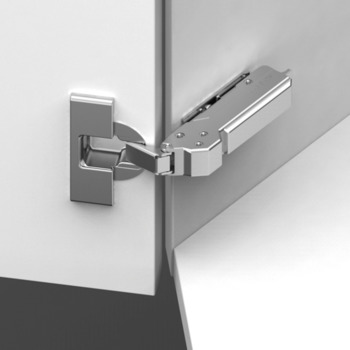

Tiomos 110/45D Hinge Clk FO SF wo SC - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 348.35.605
Tiomos 110/45D Hinge Clk FO SF wo SC - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 348.35.605
94 In stock
£13.88
Ex. VAT: £11.57
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £13.88 | — |
| 5 – 9 | £13.19 | Save 5% |
| 10 – 24 | £12.49 | Save 10% |
| 25+ | £11.10 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Article details
For 30° angle applications
Up to 24 mm (for door thicknesses 22 mm and above, a trial fitting is recommended)
Concealed hinge versionBlind corner application
Crank typeCranked
For door materialWood
Door processing for assemblywith cup drilling
Corner applications45°
Cup drilling Ø35 mm
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm
1488
Additional information attributes

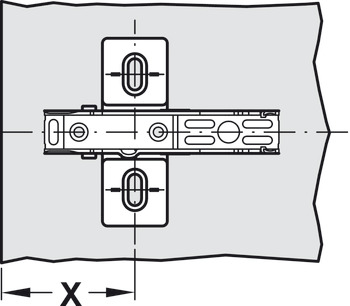

Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
For 30° angle applications
Up to 24 mm (for door thicknesses 22 mm and above, a trial fitting is recommended)
Concealed hinge versionBlind corner application
Crank typeCranked
For door materialWood
Door processing for assemblywith cup drilling
Corner applications45°
Cup drilling Ø35 mm
Adjustment facilitySide adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm
1488
Additional information attributes
Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
