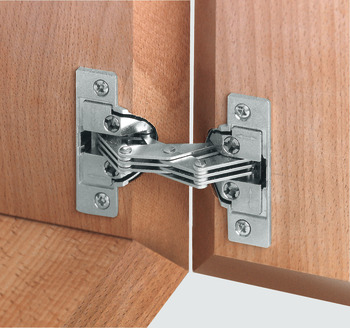

Mitred Flap Hinge 120D for 22.5D App - Cup: Zinc Alloy, Hinge Arm: Steel Nickel Plated
Product Code: 325.00.726
Mitred Flap Hinge 120D for 22.5D App - Cup: Zinc Alloy, Hinge Arm: Steel Nickel Plated
Product Code: 325.00.726
Out of Stock
£22.97
Ex. VAT: £19.14
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £22.97 | — |
| 5 – 9 | £21.83 | Save 5% |
| 10 – 19 | £20.68 | Save 10% |
| 20+ | £18.37 | Save 20% |
- Products Description
- Technical Specifications

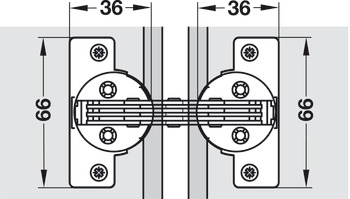

- Dimensions

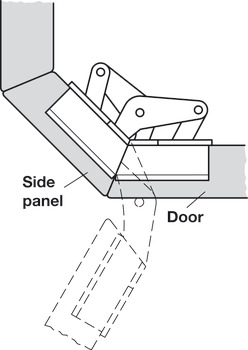

Area of application: For 22.5° mitre applications
Concealed hinge version: Mitre
For door material: Wood
Door processing for assembly: With cup drilling
Material: Cup: Zinc alloy, Hinge arm: Steel
Colour/finish: nickel plated
Opening angle: 120°
For door thickness: 16 – 22 mm
Side panel thickness: 16 – 20 mm

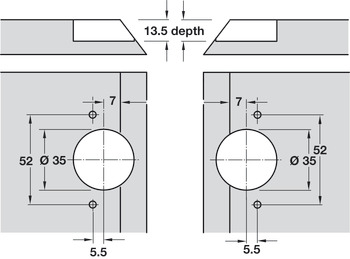

Cup drilling depth: 13.50 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Adjustment facility: Side adjustment 1.5 mm, Height adjustment 3 mm, Depth adjustment 1.5 mm, (up to 3 mm in 3 directions)
Installation: For screw fixing
Installation note: The edge must be chamfered by 3 mm from a side panel thickness of 20 mm
Order reference: Order Hospa Ø 3.5 mm raised head screws separately
Concealed hinge version: Mitre
For door material: Wood
Door processing for assembly: With cup drilling
Material: Cup: Zinc alloy, Hinge arm: Steel
Colour/finish: nickel plated
Opening angle: 120°
For door thickness: 16 – 22 mm
Side panel thickness: 16 – 20 mm
Cup drilling depth: 13.50 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Adjustment facility: Side adjustment 1.5 mm, Height adjustment 3 mm, Depth adjustment 1.5 mm, (up to 3 mm in 3 directions)
Installation: For screw fixing
Installation note: The edge must be chamfered by 3 mm from a side panel thickness of 20 mm
Order reference: Order Hospa Ø 3.5 mm raised head screws separately
| Adjustment facility | Side adjustment 1.5 mm, Height adjustment 3 mm, Depth adjustment 1.5 mm, (up to 3 mm in 3 directions) |
| Area of application | For 22.5° mitre applications |
| Concealed hinge version | Mitre |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Installation note | The edge must be chamfered by 3 mm from a side panel thickness of 20 mm |
| Order reference | Order Hospa Ø 3.5 mm raised head screws separately |
| Material | Cup: Zinc alloy, Hinge arm: Steel |
| Colour/Finish | nickel plated |
| Opening angle | 120° |
| Installation | For screw fixing |
| Drilling pattern | 52/5.5 |
| For door thickness | 16 – 22 mm |
| Side panel thickness | 16 – 20 mm |
| Cup drilling depth | 13.50 mm |
