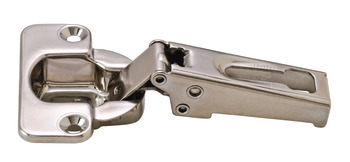

100D Hinge Sld FO SF 304 PSS - Stainless Steel, Quality 1.4301 (V2A) Polished
Product Code: 327.20.000
100D Hinge Sld FO SF 304 PSS - Stainless Steel, Quality 1.4301 (V2A) Polished
Product Code: 327.20.000
247 In stock
£16.36
Ex. VAT: £13.63
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £16.36 | — |
| 5 – 9 | £15.49 | Save 5% |
| 10+ | £13.78 | Save 16% |
- Products Description
- Technical Specifications

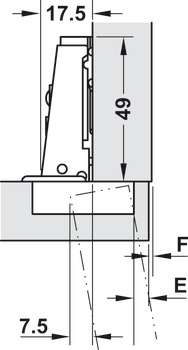

- Dimensions
Area of application: For increased requirements on corrosion
Version: Increased corrosion requirements
Function: With automatic closing spring

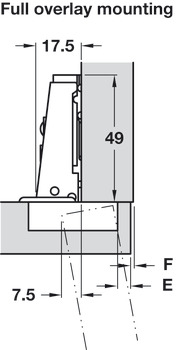

Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Stainless steel, quality 1.4301 (V2A)
Colour/finish: polished
Opening angle: 100°
Cup drilling depth: 11 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing

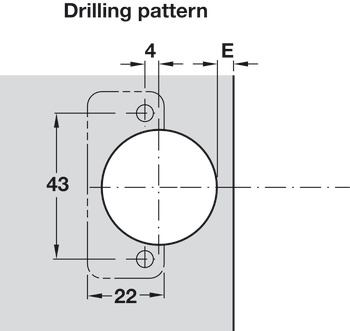

Drilling pattern: 43/4
Adjustment facility: 3-dimensional (with appropriate mounting plate)
Installation: Door on cabinet with slide-on system
Order reference: Order Hospa Ø 3.5 mm countersunk screws separately
Version: Increased corrosion requirements
Function: With automatic closing spring
Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Stainless steel, quality 1.4301 (V2A)
Colour/finish: polished
Opening angle: 100°
Cup drilling depth: 11 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 43/4
Adjustment facility: 3-dimensional (with appropriate mounting plate)
Installation: Door on cabinet with slide-on system
Order reference: Order Hospa Ø 3.5 mm countersunk screws separately
| Adjustment facility | 3-dimensional (with appropriate mounting plate) |
| Area of application | For increased requirements on corrosion |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With automatic closing spring |
| Order reference | Order Hospa Ø 3.5 mm countersunk screws separately |
| Version | Increased corrosion requirements |
| Material | Stainless steel, quality 1.4301 (V2A) |
| Colour/Finish | polished |
| Opening angle | 100° |
| Installation | Door on cabinet with slide-on system |
| Drilling pattern | 43/4 |
| Cup drilling depth | 11 mm |
